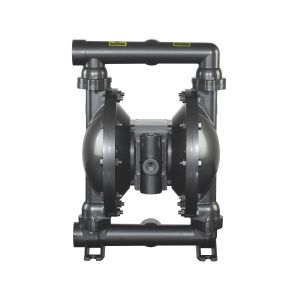

High Speed Air Driven Double Diaphragm Pump Good Self Priming Performance

Brand Name : BSK
Model Number : BSKA50AL-P99-A
Place of Origin : china
MOQ : 10
Price : Negotiable
Payment Terms : FOB T/T
Supply Ability : 10000/mon
Delivery Time : 5
Packaging Details : carton
HS CODE : 8413501020
production : Small Diaphragm Pump
Maximum flow rate : 667l/min
Noise level : <70db
Maximum air inlet pressure : 0.83Mpa
Usage : Air Pump
Application : Sewage
Contact Now

High Speed Air Driven Double Diaphragm Pump Good Self Priming Performance


Air Driven Double Diaphragm Pump Introduction


Air Driven Double Diaphragm Pump (also know as a Membrane pump, air operated double diaphragm pump(AOOD)or pneumatic diaphragm pump)that uses a combination of the reciprocating action of a rubber,thermoplastic or teflondiaphragm and suitable valves either side of the diaphragm (check valve,butterfly valves,flap valves,or any other form of shut-off valves) to pump a fluid.


Air Driven Double Diaphragm Pump Parameters


ItemDescriptionUnitReference Figure
1Maximum air inlet pressureMpa0.83
2Maximum flow rateL/Min667
3Maximum liftM70
4Maximum outlet pressureMpa0.83
5Maximum particle sizemm7
6Weightkg28
7Noise leveldb<70

Air Driven Double Diaphragm Pump Application:


It is widely applied in waste water treatment, chemical industry, petrochemical industry, painting, ceramics, environmental protection, printing and dyeing, etc. to deal with all kinds of corrosive, volatile, flammable, poisonous fluids with particles and high viscosity.


The diaphragm pump offers high volume delivery even at low air pressure and a b road range of material compatibility options available.Refer to the model and option chart.The pump is provided with the modularized air motor and fluid section.

The air operated diaphragm pump alternately generates the intake fluid pressure and positive fluid pressure in the fluid chamber by using the pressure difference in the air chamber. The ball valve can ensure the forward flow of fluid.


Pump cycling will begin as air pressure is applied and it will continue to pump and keep up with the demand. It will build and maintain line pres -sure and will stop cycling once maximum line pressure is reached (dis -pensing device closed) and will resume pumping as needed.


Product Features


1Ceramic material for main valve and reversing valve ensures longer life, more stability and working in dirty compressed air ( most occasions, air filter become option).
2Without ice with the muffler. Innovative design with the exhaust space of the pump, some of muffler inside, this makes the air outlet smooth.)
3Outward parts of the pump are all die casted aluminum and special environment-protected painting, makes the pump with elegant appearance.
4Large flow capacity. Innovative design of chamber maximizes the flow capacity. Seamless adjustment with inlet valve, or even close the valve, without damaging the pump.
5Low consumption compressed air. Innovative design of the air flow system, minimizes the usage of compressed air to achieve maximum performance.
6Light and small size, movable.
7Modularization of main valve and air motor. No broken, easy to disassemble and repair.
8Optimized design greatly reduces overall component number of pump. Significantly improve performance, help for maintenance.
9For power variety, pneumatic pump’s flow capacity normally lowers than electric pump, but BSK pump is workable in series at certain conditions. This can largely satisfy customer request.
10Innovated design of sealing structure and material, totally solve the leakage inside or outside.
11BSK pump can be started with low air press ( only 1.5 KG air press can start BSK pump).

2" Discharge Diagram
